CH4X4 Universal 6 Gang LED Touch Screen Panel with Sealed Control Box, Wiring Harness and Label Stickers for Trucks, Jeeps, ATV/UTV, Cars, Marine Boats, RV (12/24V)

$79.98

CH4X4 Universal 6 Gang LED Touch Screen Panel is a new generation of switch panel, perfect suit for applications in Trucks, Jeeps, ATV/UTV, Cars, Marine Boats, RV, etc.

Description

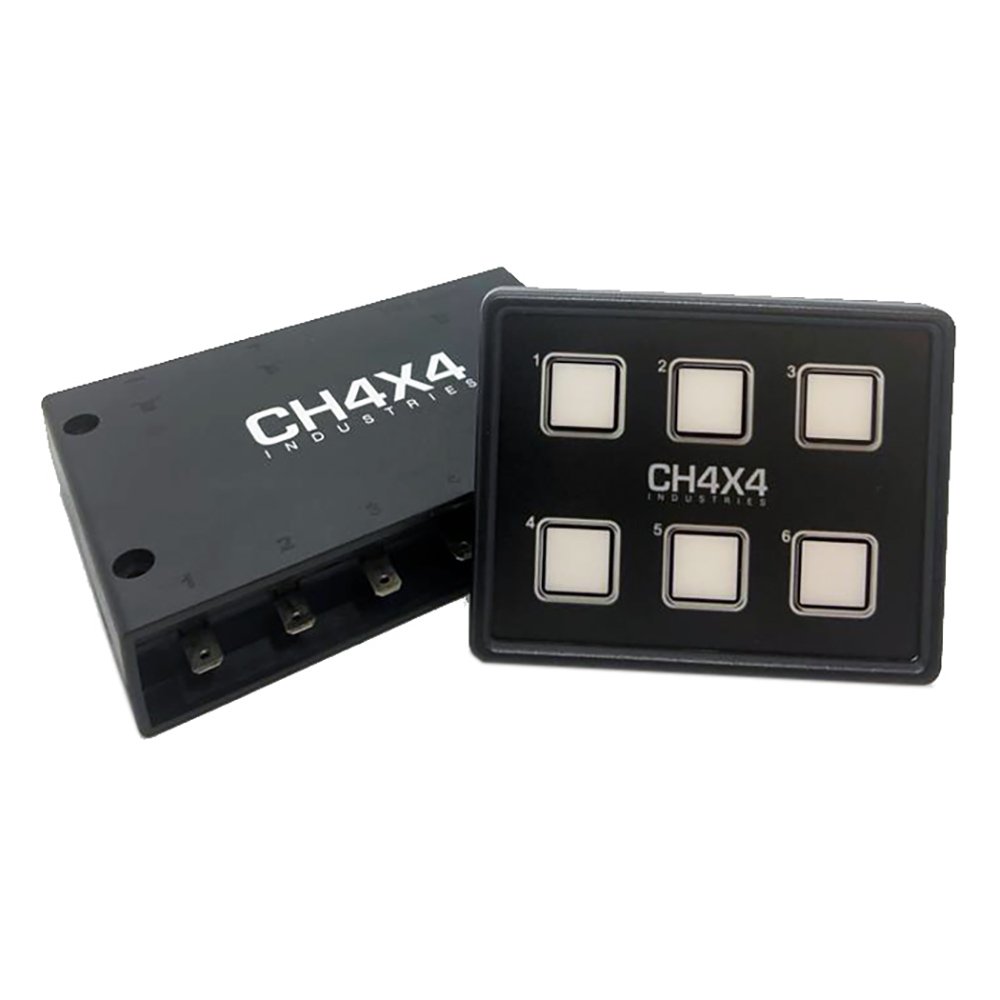

CH4X4 Universal 6 Gang LED Touch Screen Panel is all in one design, no need to buy extra parts. Touch Screen Panel + Circuit Control Box + Cable + Self-Adhesive Label Stickers + Wiring Harness + Screw Sets.

The switch panel can control 6 kinds of led light bar or accessories at the same time under 12-24 Volts. Adopt capacitive sensing technology with blue indicator light display, the CH4X4 switch panel has the features of high sensitivity, stability and strong anti-interference ability.

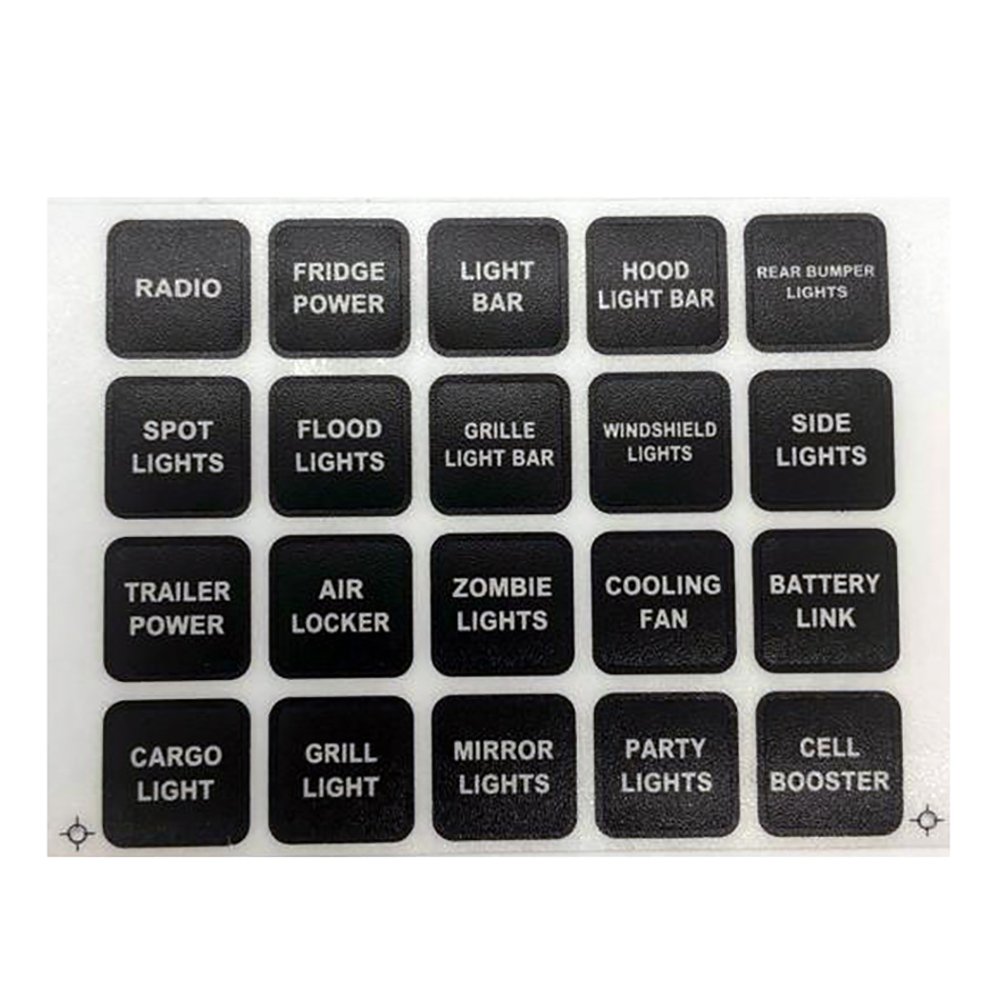

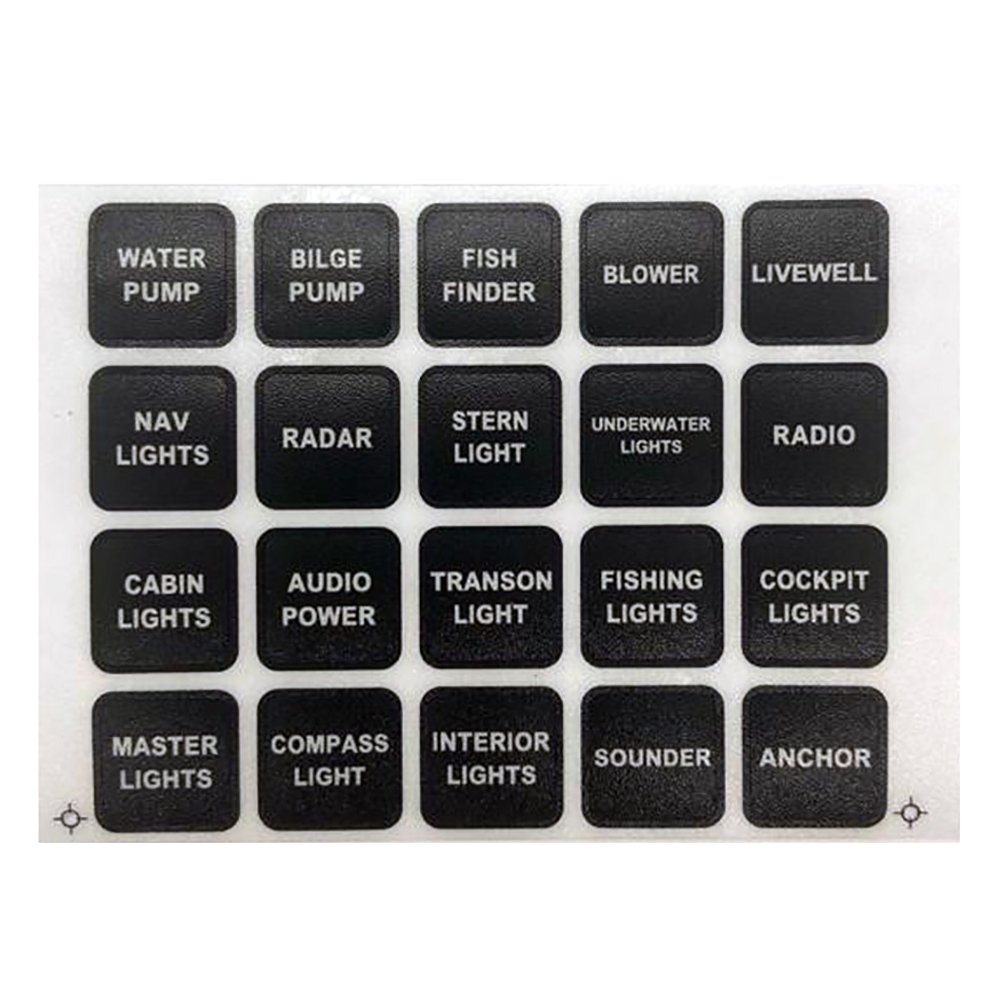

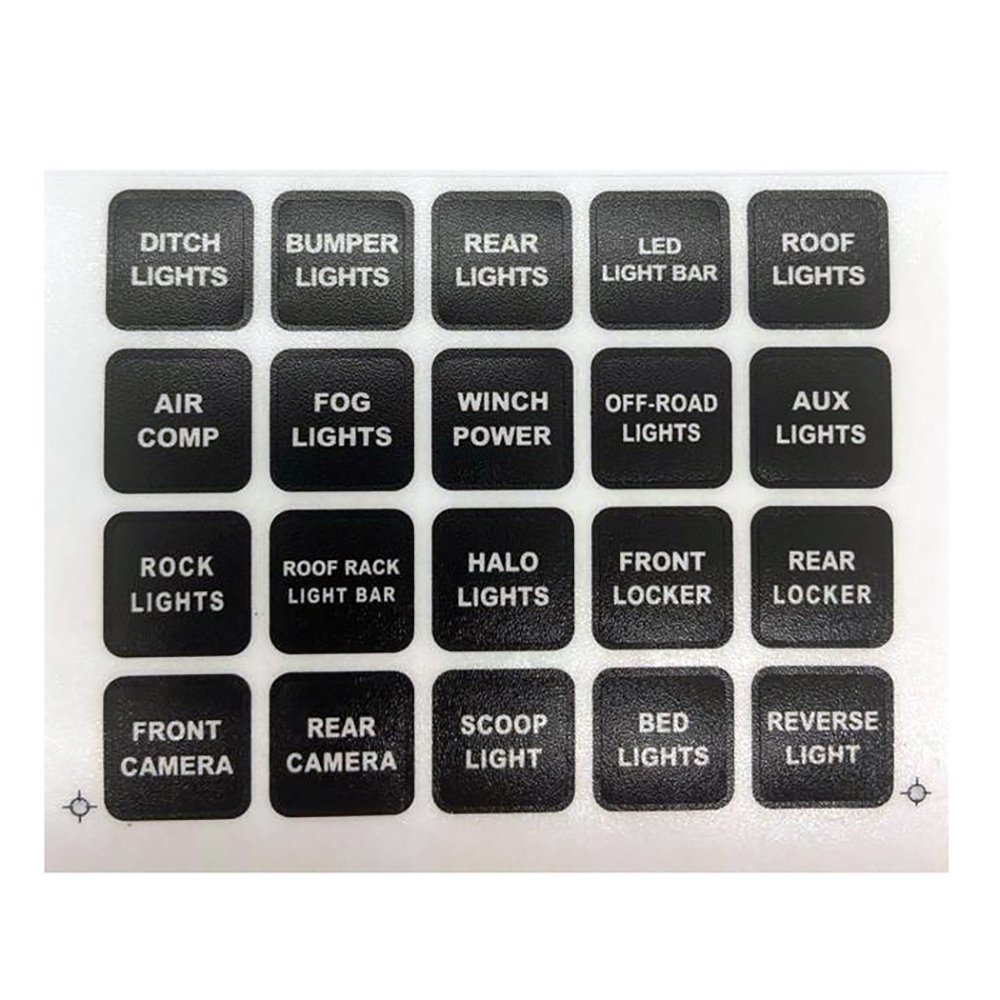

Our 60 exclusive custom Self-Adhesive Label Stickers included allow you to use the panel with Off Road or Marine accessories, giving them greater possibilities and uses in different vehicles or vessels.

Easy installation: Plug & play wiring harness. Labels attach easily, space saving and time saving.

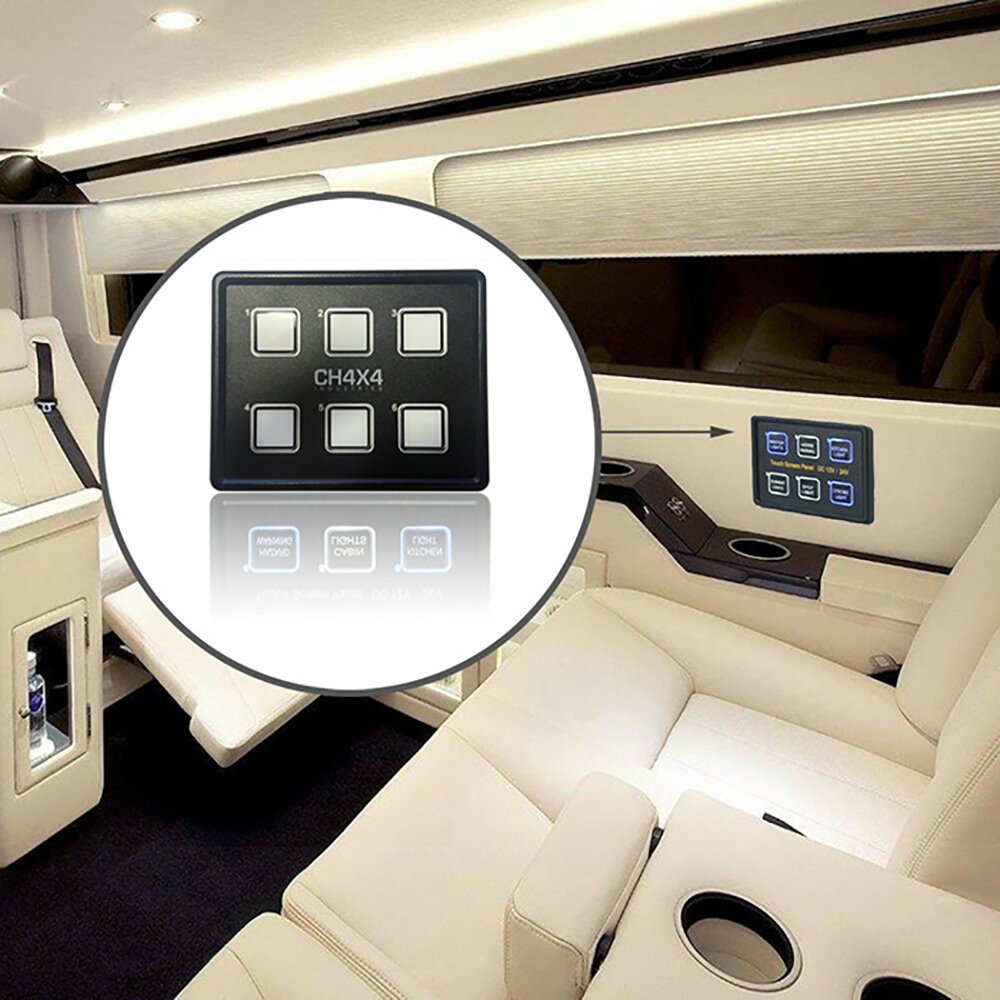

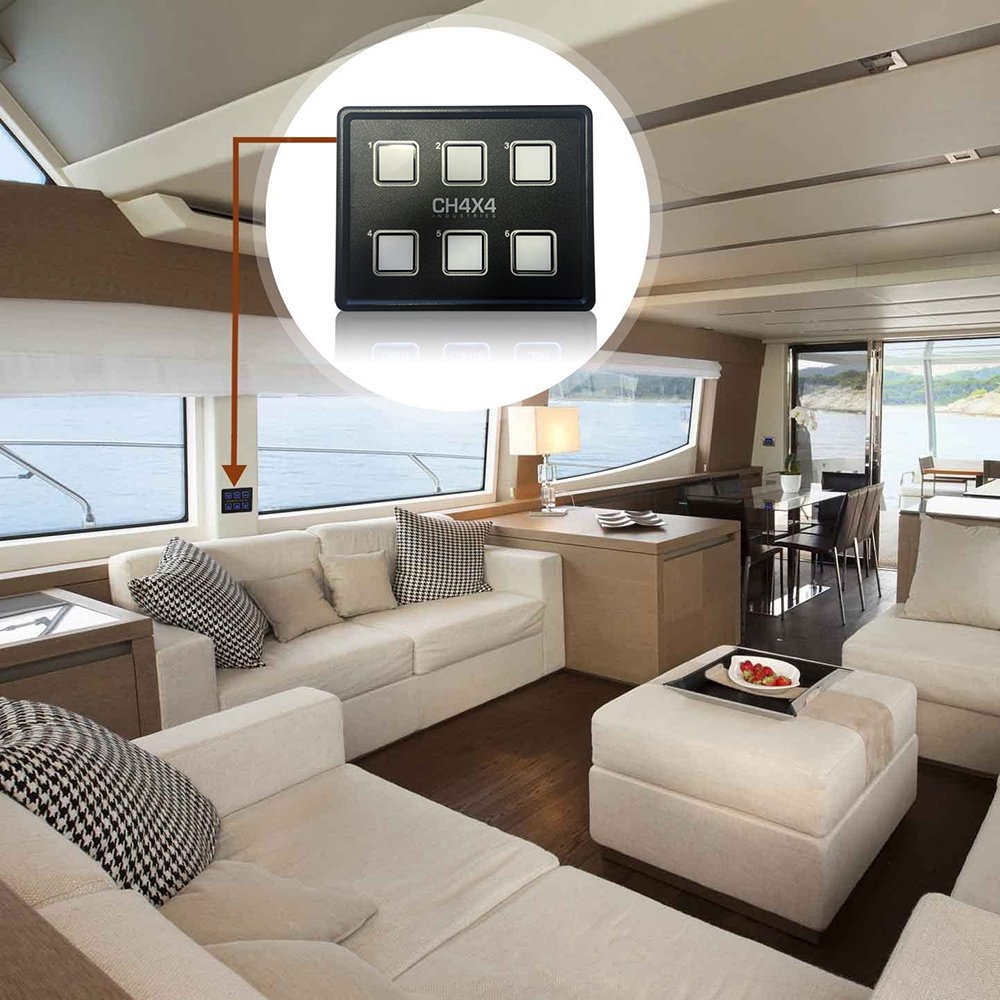

Application: Perfectly suitable for off road, Jeeps, powersports, marine boats, yacht, trailers, bus, RV, etc.

Installation Guide:

  1. Cut one hole on the dashboard.

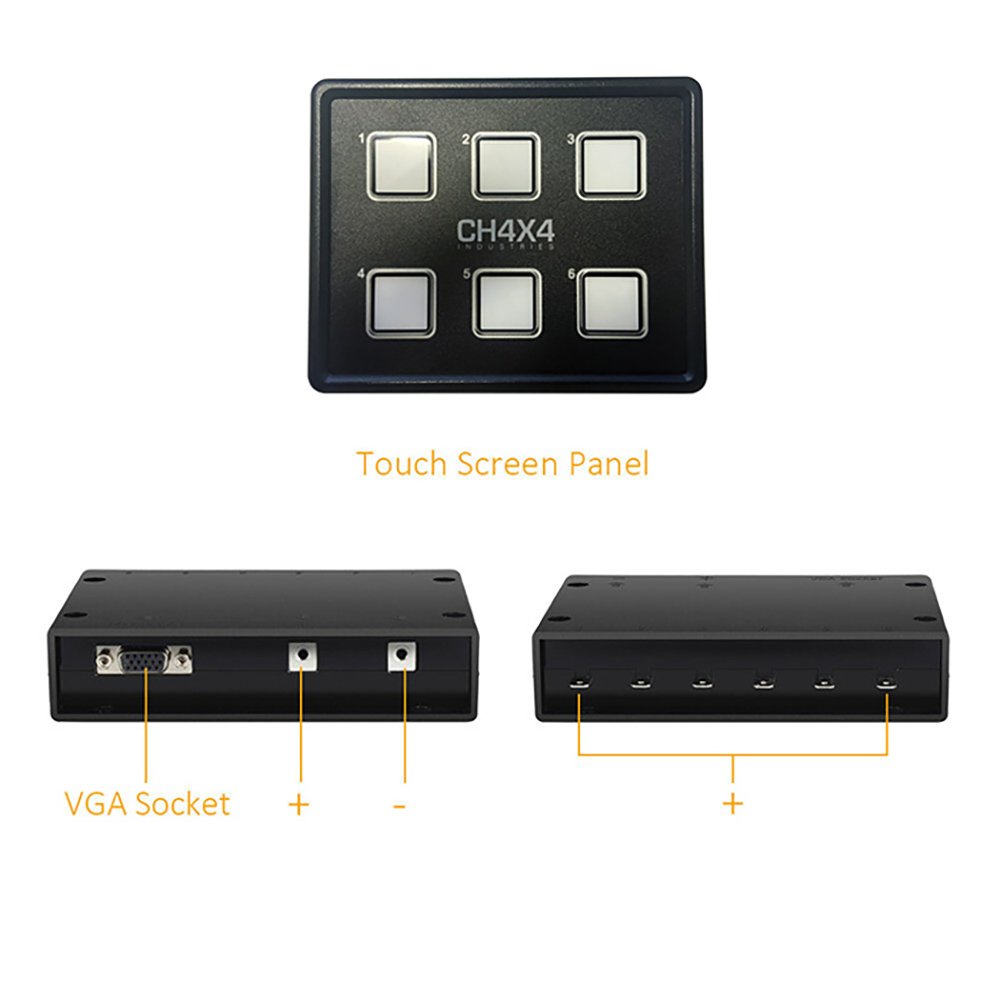

  2. Connect CH4X4 touch screen panel with control box by using the provided transmission cable.
  3. Connect the device or application positive to the pin.

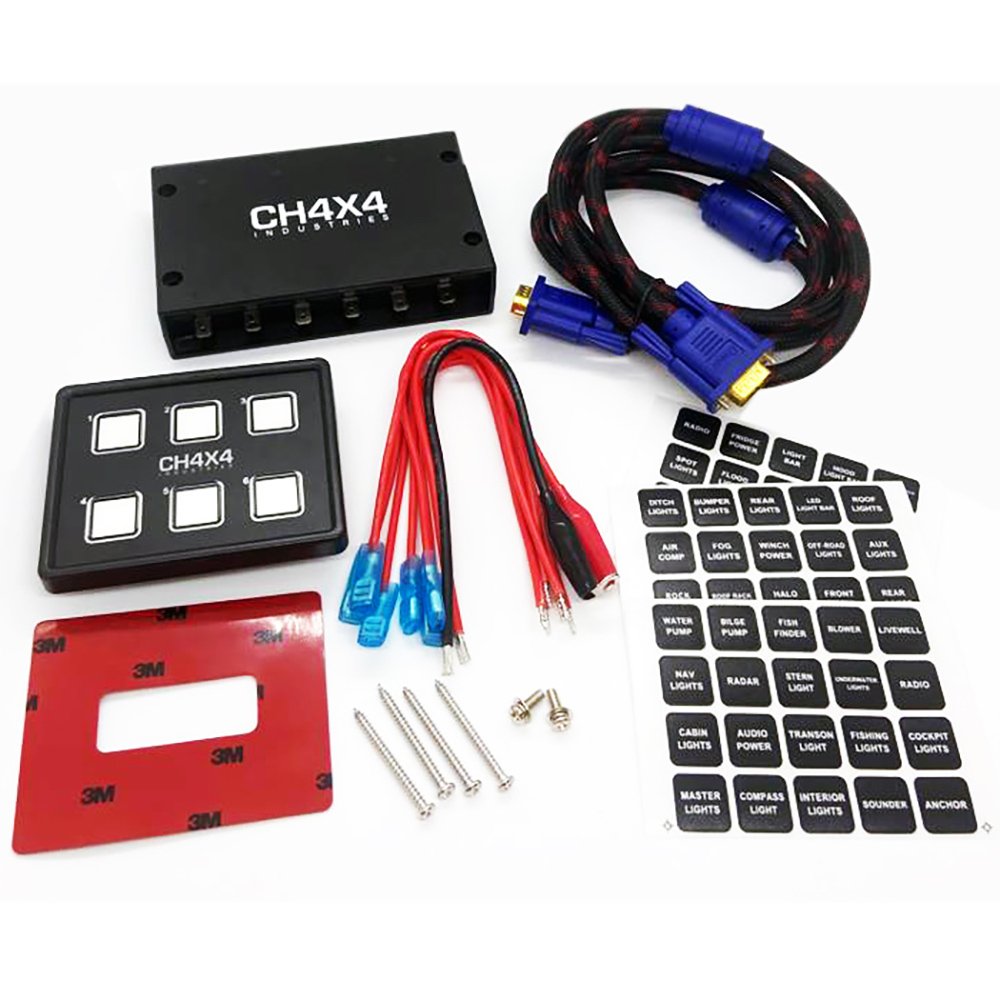

Package Included:

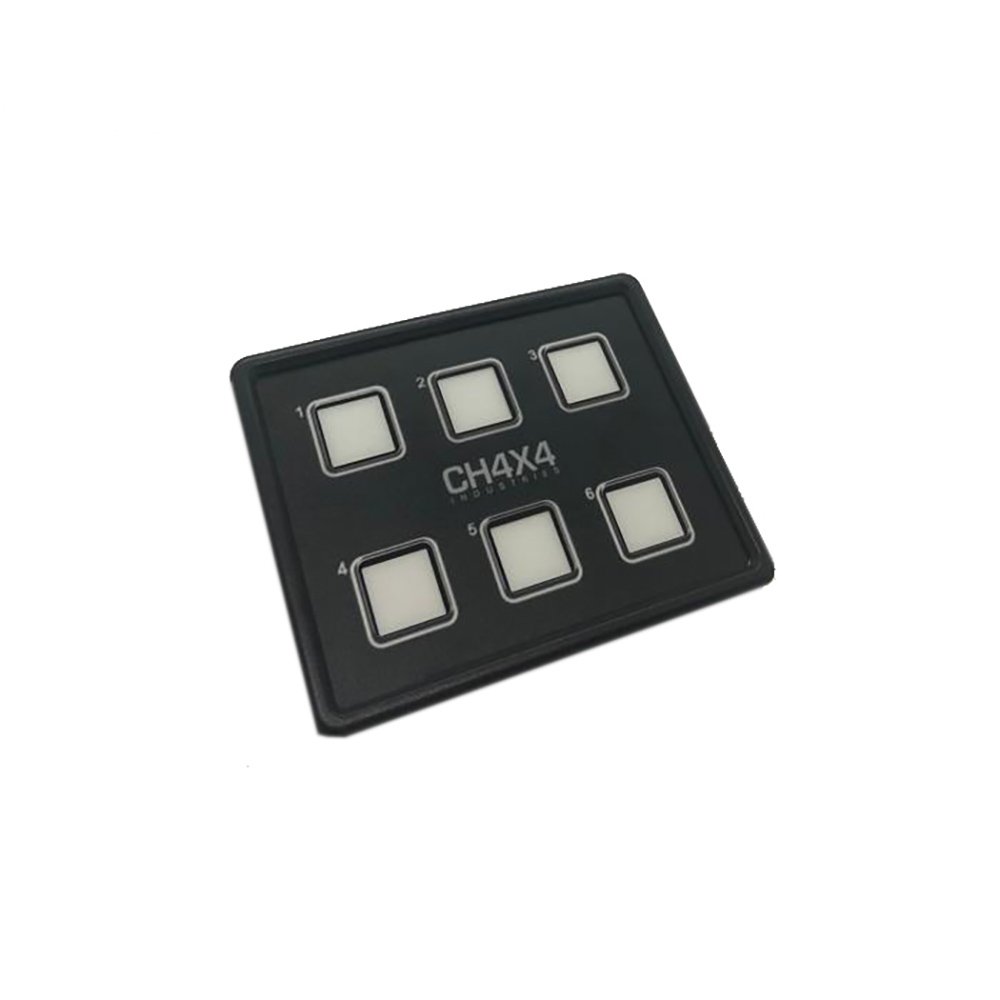

  • 1 x CH4X4 6 gang touch screen panel

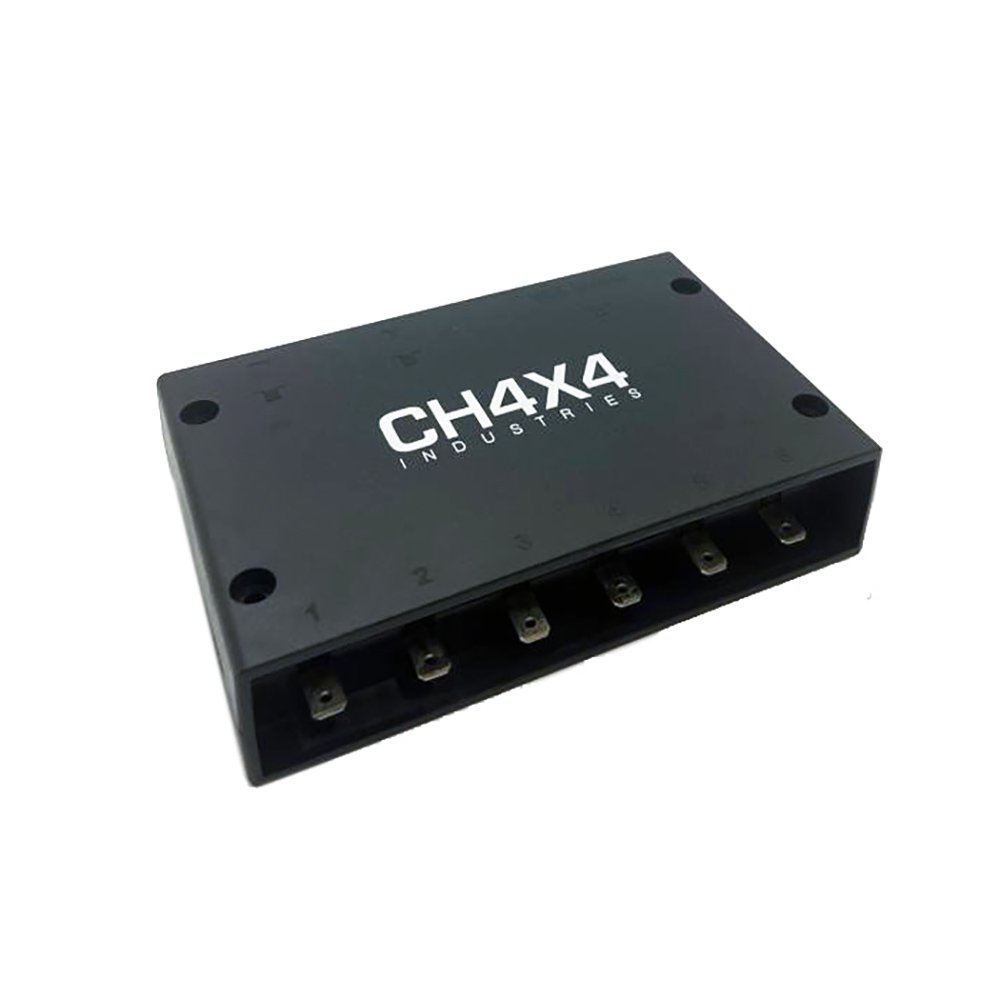

  • 1 x Sealed control box

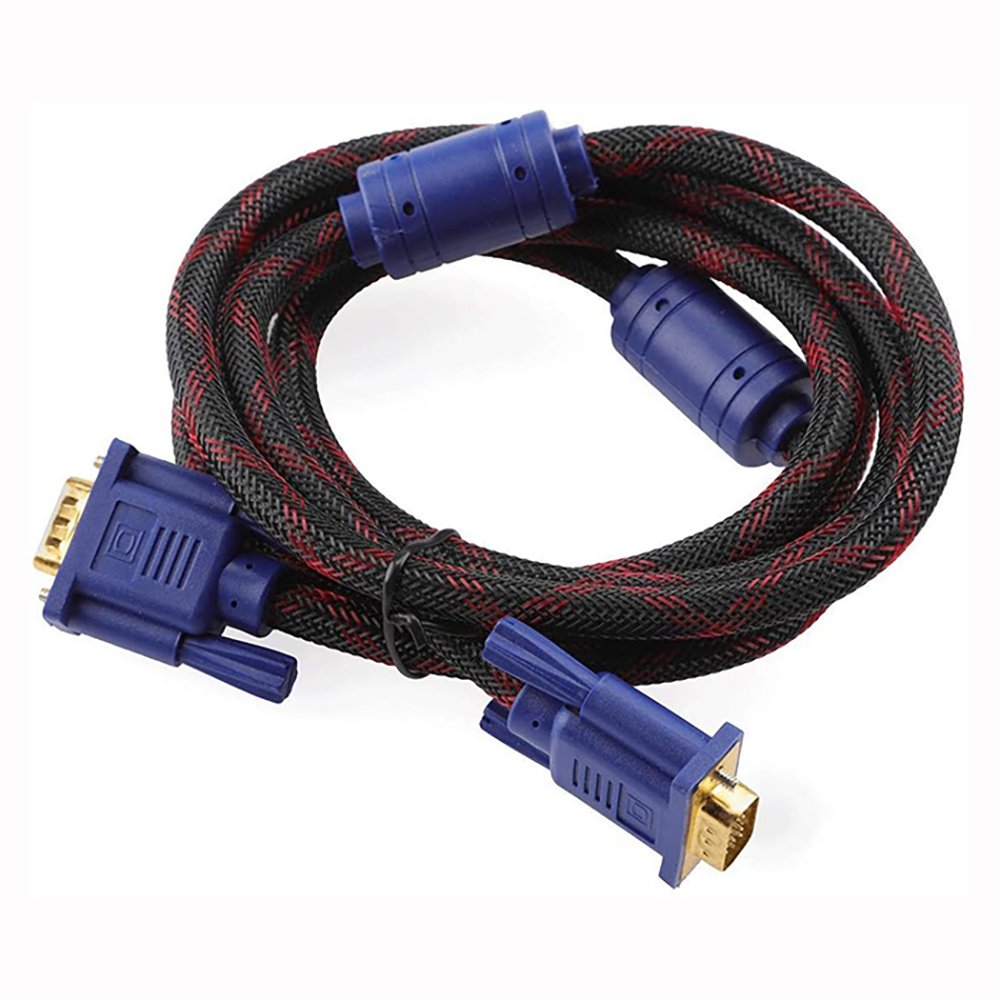

  • 1 x 15-PIN transmission cable
  • 1 x 3M double sided tape
  • 60 x label stickers
  • 2 x Input wire
  • 6 x Output wire
  • 2 x M4*12 Stainless steel screws
  • 4 x M4*45 Stainless steel screws

Specifications:

  • Input Voltage: DC 12V-24V
  • Output: DC 12V 10A / 24V 10A
  • Waterproof rating: IP67
  • Reverse polarity protection
  • Overload protection

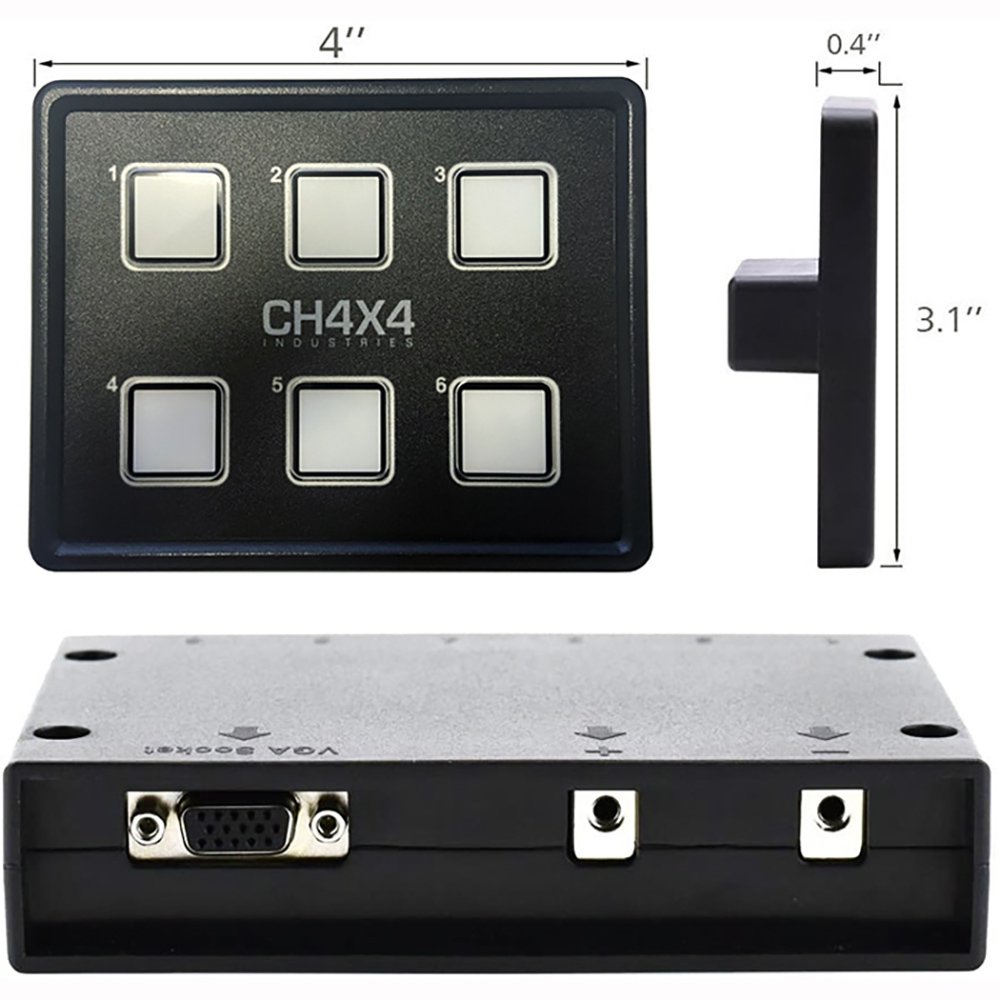

  • Touch screen panel dimensions: 3.15” x 3.94” x 0.39” (80x100x10mm)
  • Sealed control box dimensions: 3.35” x 5.31” x 1.18” (85x135x30mm)
  • Hole Size: 1.97” X 0.79” (50x20mm)

Additional information

Weight 24 oz
Dimensions 6 × 5 × 4 in
