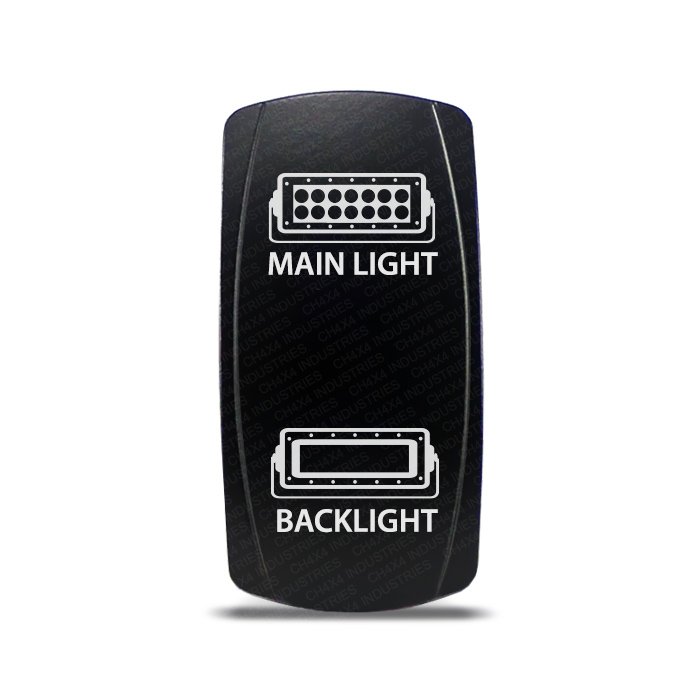

CH4x4 Rocker Switch DPDT ON-OFF-ON Main – Back Light Symbol is a double pole double throw ON-OFF-ON switch (Non Momentary) designed to operate your accessories. They have a face surface size of 1.93” (49mm) x 1” (26mm) and uses a standard din size mounting hole of 1.5” (37.5mm) x .80” (21.2mm), this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
All symbols are laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life. We do not use stickers or ink which will wear off in a very short time.
The switch is rated to 20amp at 12V and 10amp at 24V however in ALL case we recommend that you wire the accessory through a fused relay.
• Double Pole Double Throw ON-OFF-ON switch (Non Momentary)
• Black hard surface rocker
• Single upper LED light
• Single lower LED light
• Upper light is ON when the switch is pressed UP
• Lower light is ON when switch is pressed DOWN
• Waterproof rating of IP66
• Same size as the Carling and ARB switches
• Rated 12V 20A / 24V 10A
• No rear barriers between terminals
• Wiring diagram supplied with switch
