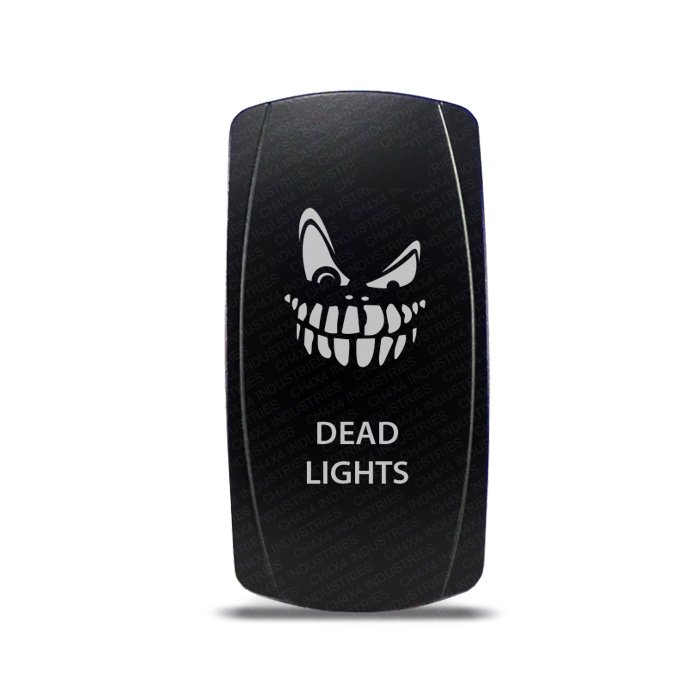

CH4x4 Rocker Switch Dead Lights Symbol is a single throw ON – OFF switch designed to operate your accessories. They have a face surface size of 1.93” (49mm) x 1” (26mm) and uses a standard din size mounting hole of 1.5” (37.5mm) x .80” (21.2mm), this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
All symbols are laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life. We do not use stickers or ink which will wear off in a very short time.
The switch is rated to 20amp at 12V and 10amp at 24V however in ALL case we recommend that you wire the accessory through a fused relay.
• Single Pole Single Throw ON-OFF switch
• Black hard surface rocker
• Two LEDs in the switch
• Upper LED is ON only when the switch is turned ON
• Lower LED is independent
• Both LEDs have separate grounds
• Same size as the Carling and ARB switches
• Rated 12V 20A / 24V 10A
• No rear barriers between terminals
• Wiring diagram supplied with switch
