Home Rocker Switches Marine Series CH4X4 Marine Momentary Rocker Switch Anchor Symbol
blank
CH4X4 Marine Rocker Switch Anchor Symbol $16.99
Back to products
blank
CH4X4 Marine Momentary Rocker Switch Anchor Symbol $21.98

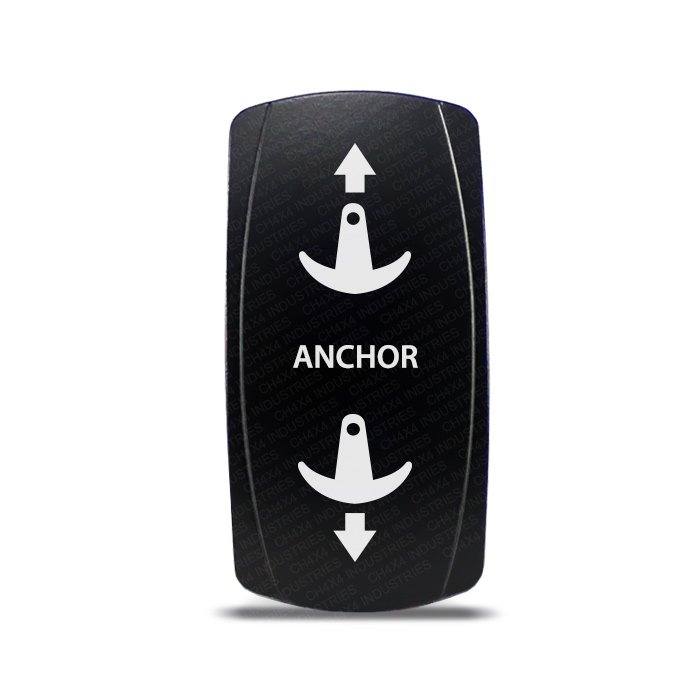

CH4X4 Marine Momentary Rocker Switch Anchor Symbol

$21.98

CH4X4 Marine Momentary Rocker Switch Anchor Symbol are high quality marine grade switch, double throw momentary, designed to operate all of your 12v or 24v accessories or devices, perfect for use on a boat or marine vessel.

Warning

Weight 2 oz
Dimensions 5 × 5 × 2 in
Switch LED Color

Amber, Blue, Green, Red, White

Switch Model

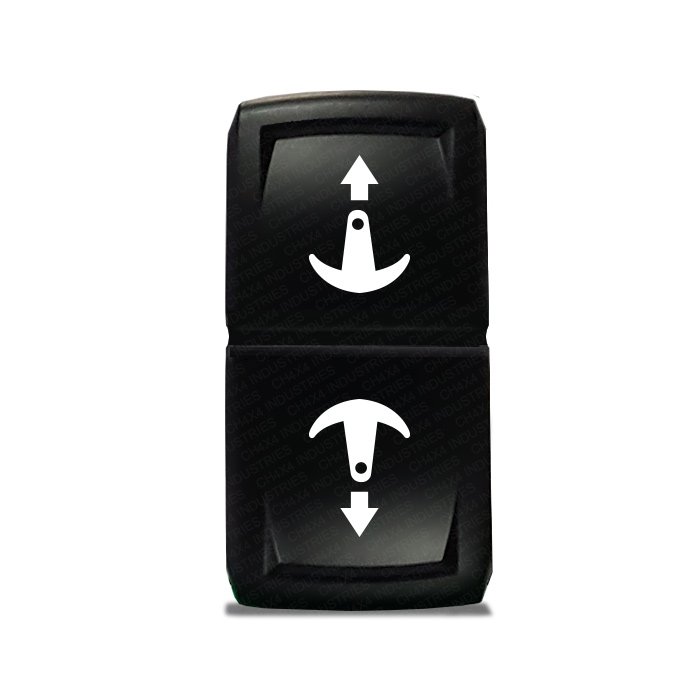

Regular Rocker Cap, V2 Rocker Cap

Switch Orientation

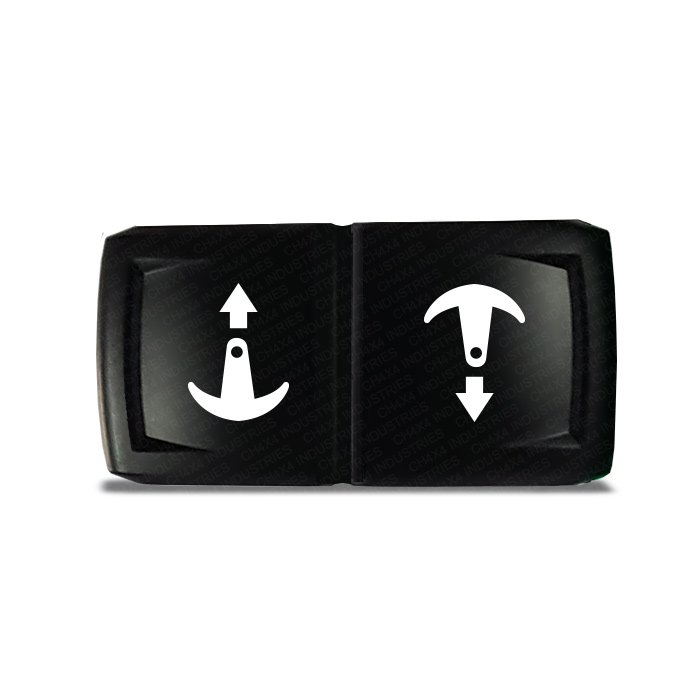

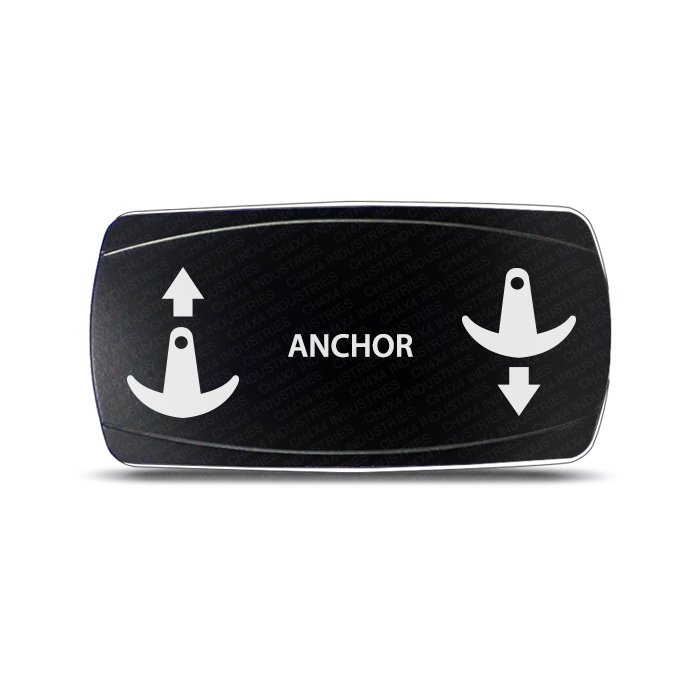

Horizontal, Vertical

Amber
Blue
Green
Red
White
Clear

— OR —

Compare
Add to wishlist
SKU: CH4X4-MS-ANCH2 Categories: Marine Series, Rocker Switches Tags: 20A 12V, Carling, Contura V, Marine Switch, Rocker Switch, V-Series, Vertical Switch
Share:
  • Description
  • Dimensions
  • Wiring Diagram
Description

CH4X4 Marine Momentary Rocker Switch Anchor Symbol are high quality marine grade Rocker Switch, double throw momentary switch (returns to center position by the spring), designed to operate all of your 12v or 24v accessories or devices, perfect for use on a boat or marine vessel. Our Switches have many applications, from turning ON and OFF lights to powering pumps, anchor winches, air horns, freezers, cooling fans, Radio and communications equipment, and even Navigational signals. Certified to IP66, these standard rocker switches offer complete protection against dust, prolonged spray and high-pressure wash resistant and are recognized to UL1500 – Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40 to 85 degree celsius

All symbols are laser etched directly onto the switch face to ensure long lasting image life. We do not use stickers, paint or ink in our switches, which will wear off in a very short time, this also gives the switch a more styling and clean design.

FEATURES:

• Different LED lights color to choose from (Blue-Red-Green-White-Amber)
• Double Pole Double Throw MOMENTARY switch
• Black hard surface rocker cap
• Twin upper and Single lower incandescent lights
• Upper lights are ON when the switch is pressed UP
• Lower light is ON when switch is pressed DOWN
• Rated 20A AT 12V/10A AT 24V
• No rear barriers between terminals
• Weather proof
• Easy to install, wiring diagram supplied with switch

These switches have a surface of 2” (50mm) x 1” (25mm) and they use a standard din size mounting hole of 1.45” (36.83mm) x 0.83” (21.08mm); these are the standard size measurements. Our switches come packed with instructions on the back of each of them and we also have our technical support staff here to help you.

CH4X4 Marine Momentary Rocker Switch Anchor Symbol is a Part of Cruiserheads Store
