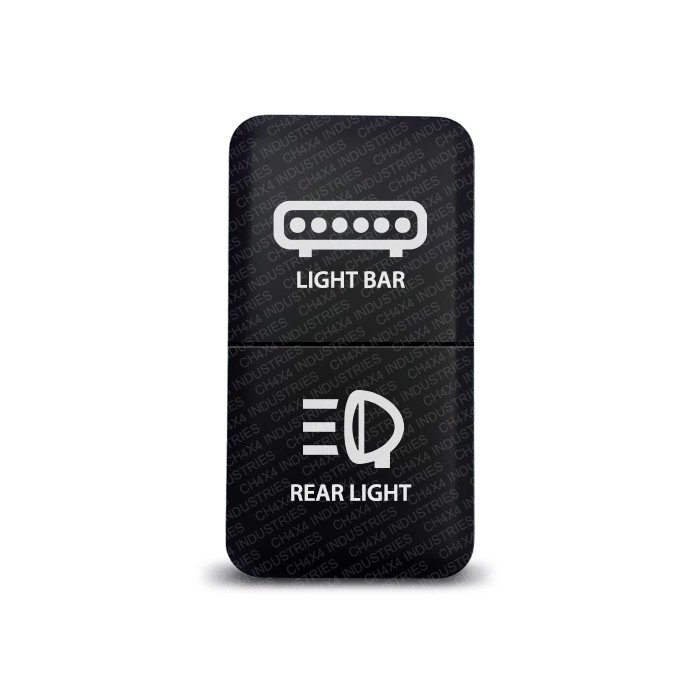

CH4x4 Dual Push Switch for Toyota – Lightbar & Rear Light Symbol is perfect when you have limited space or wish to maximize your existing OEM switch locations, this dual switch doubles the number of switches you can install without the need to damage your vehicles dash by cutting additional holes giving you a clean and original style look, each OEM switch has a face surface size of 1.54″ x 0.83″ (39 mm x 21 mm).
These switches are made out of heavy-duty ABS plastic that will ensure years of service and come in a mate black surface color, the same color as the OEM Switches, All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
These Switches are an aftermarket switch that locks into your existing panel super easy to install in less than 10 min’s.
• The product is manufactured to fit in the OEM space available in your car or truck, simple to install
• Single powered input feeding two independently switched outputs
• Dual colored (Blue / Green) illumination powered via existing dash light circuit

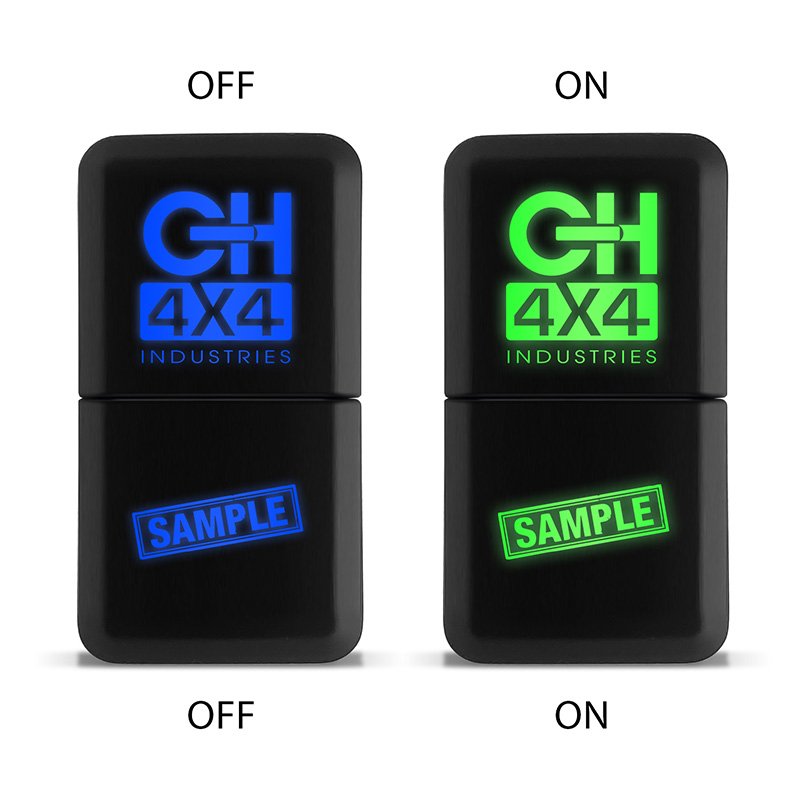

• Blue illumination when the switch is in the OFF position and Green illumination when the switch is ON
• Laser etched Legend
• Rated at 3 Amp 12V
• Wiring diagram and Harness supplied with switch
The CH4X4 Dual Push Switches for Toyota are 2 electronic switches rated at 3 amp on each side. Therefore in ALL cases, you will NEED TO wire each side through a fused relay because they are two separate circuits (2 switches in one).
• 1 Dual Push Switch
• 1 Connector with cable for easy installation
FITS THESE VEHICLES:
• Toyota Tacoma 2005-2011
• Toyota Tacoma 2012-2015 (Left Side ONLY)
• Toyota Tacoma 2016 – 2020 (Left Side ONLY)
• Toyota FJ Cruiser 2007-2014
• Toyota Fortuner 2005-2014
• Toyota Hilux 2005-2014
• Toyota Highlander 2001-2007
• Toyota Tundra 2005-2006 (Center Console if equipped)
• Toyota 4Runner 2003-2009
• Toyota Prado 120 Series 2003-2009
• Toyota Land Cruiser 100 Series 1998-2007
• Toyota Land Cruiser 75, 76, 78 & 79 series
